TUBECLO TUBE CLAMPS

BAHASA INDONESIA
Tubeclo tube clamps are produced in line with the specifications of DIN 3015 standards. The acronym DIN stems from the German word “Deutsches Institut fϋr Normung”, which translates to “German Institute for Standardization” in English. The establishment was formed in 1917, with its headquarter located in Berlin, Germany. Various standards were given for products around the technology field.
​
These standards were incorporated into the production of tube clamps and as a workplace safety measure for reducing strong vibrations and mechanical shock in industrial machines. Tubeclo Tube clamps can be used for myriad purposes as they function as fittings for different industrial machines. For instance, Tubeclo ​tube clamps are suitable for cable trays, pipes, hoses and tubes.
Accessories Element
  • Top Cover Plate
  • Bottom Weld
  • ​Hexagon Bolt
Body Element & Temperature Dimension
  • Polypropylene (PP), -30 ⁰C to + 90 ⁰C
  • Polyamide (PA), -40 ⁰C TO +120 ⁰C
  • Aluminium (AL), Up to 300 ⁰C
Size & Series
  • 6mm to 102mm (Standard)
  • 6mm to 406mm (Heavy)
  • 6mm to  42mm (Twin)
Accessories Material
  • Stainless Steel SS316
  • Galvanized Steel

1. What are Tubeclo Tube Clamps made of?

Clamps are handy tools used to fasten devices together when working to prevent shifting of these objects.  Clamps are produced in many types and serve different purposes. Clamp types are available in three different types – standard series, twin series and heavy series.
  • Standard Series are clamp types majorly used for installation where average load and moderate vibration is required. That is, it can be used where there is minimal workload with normal pressure application. They are used for tube sizes measuring up to 4 inches and 102mm outer diameter.
  • Twin Series are available for tube sizes measuring up to 42mm outer diameter. They are smaller and used for installations with closely placed lines. Generally, they are for industrial use with moderate vibrations.
  • Heavy Series are preferable for applications requiring higher vibration and higher load. They are available for pipe sizes up to 16 inches and 406mm outer diameter. They are mostly used in the mining and metal manufacturing industry.​ ​

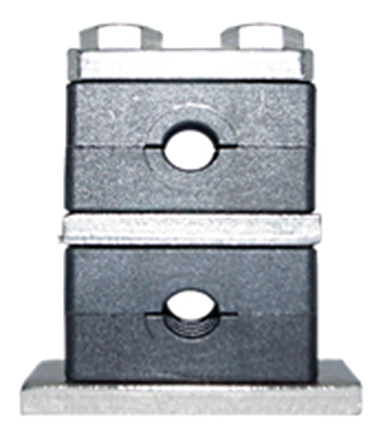

Tubeclo Tube Clamp Heavy Series Double Stack Polyamide Material
Tubeclo Tube Clamp Heavy Series Double Stack Polyamide Material
Tubeclo tube clamps are tools used in fastening tubes together. Tube clamps are mostly used in construction industries because it accommodates joining large tubes together. They are produced with the DIN 3015 standards and can be piled together to maximize space in a room.
​
Tubeclo tube clamps are designed with plastic in a square shape and a ribbed bore which gives the object a firm hold. Tubeclo tube clamps are made up of four parts – clamp shell body, cover plate, hexagon head bolts and weld plates. Tube clamps are quick to install and suitable for all purposes.

2. What is Tubeclo Tube Clamp used for?

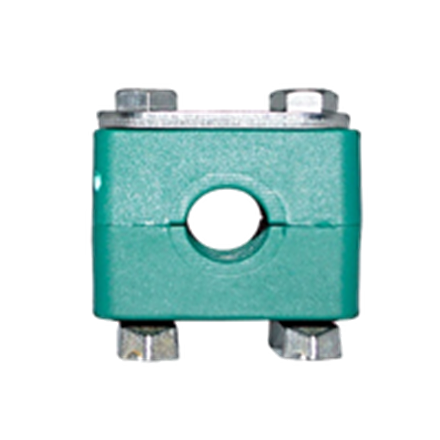

Tubeclo Tube Clamp Standard Series Polypropylene Material with Rail Nuts
Tubeclo Tube Clamp Standard Series Polypropylene Material with Rail Nuts

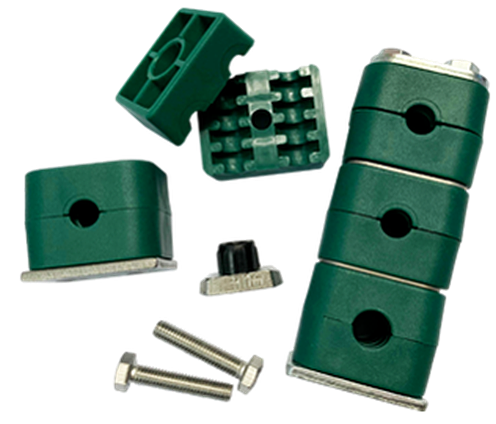

A complete set of tube clamps has two similar halves – top and bottom halves. They are from 3 materials, polypropylene, aluminium and polyamide. The combination of these materials contributes to the excellent performance it gives while working in terms of gripping, stability and temperature range system. The Polypropylene material represented by the green colour can accommodate temperature pressure between -30 ⁰C to +90 ⁰C. Aluminium material (silver colour) can withstand heat to a maximum of 300 ⁰C, while the Polyamide (black colour) working temperature pressure ranges between -30 ⁰C to +90 ⁰C.
Material Code
PP
PA
PPH
PAH
ALU
Material
Polypropylene
Polyamide
Polypropylene
Polyamide
​Aluminium
Colour
​Green
Black
Green
Black
Aluminium
Design
Profile inside with tension clearance
Profile inside with tension clearance
Smooth inside without tension clearance
​Smooth inside without tension clearance
​Profile inside with tension clearance
The table above shows more about the Tubeclo tube clamps body and the colour coding.
Material Grade
Carbon Steel ST37
Carbon Steel ST37
Carbon Steel ST37
Stainless Steel A2
Stainless Steel A2
Surface Coating
Untreated
Phosphated
Zinc / Nickel Coated
1.4301 / 1.4305 (AISI 304 / 303)
​1.4401 / 1.4571 (AISI 316 / 316Ti)
Code
W1
W2
W3
W4
W5
This next table shows the accessories material and finishing available in steel and stainless steel material.

BAHASA INDONESIA

3. What are the uses of Tubeclo Tube Clamps?

Tubeclo Tube clamps can also be referred to as pipe clamps or hydraulic brackets. The primary task of a tube clamp is to ensure objects are held in their place position without movement until the work is completed. To be more explicit, the following points will explain the uses of tube clamps in each sector:
  • Wind Farms (Onshore and Offshore): Tube clamps are used on wind farms to install fitting tubes, pipes and hose lines. The device is used because it simplifies line running and reduces outlay for maintenance.
  • Oil and Gas Production:  the tubes or hose line installed under the water in the oil and gas industry work under heavy-duty loads placed on them. Also, elements like salt, oil, wind, and grease and temperature changes can affect fastening systems. However, the clamp assembly can help reduce maintenance cost and eases full line running.
  • Ship Building: in constructing oil tankers, cruise ships, yacht, cargo ships, tube clamps help increase comfort and strength for passengers and give maximum stability for wind waves, weather and other environmental hazards which can affect the efficiency of the ships.
  • Mining: in the mining industry, especially during deep mining and tunnel constructions, lots of tubes and hoses line are used. For example, tube clamps were used in the construction of the Panama Canal and European railway tunnels. They help reduce the maintenance of running this heavy-duty equipment.
  • Vehicle Construction and Mobile Hydraulics: many construction machines like cranes create mixers, agricultural machines, utility vehicles, etc work with very high hydraulic systems. Tube clamps used here are used for safe installation and fixing of these hydraulic lines in the appropriate positions.
Tubeclo Tube Clamp Heavy Series Double Stack Polypropylene Material Components
Tubeclo Tube Clamp Heavy Series Double Stack Polypropylene Material Components

4. What is the maximum weight for a Tubeclo Tube Clamp?

Tubeclo Tube clamps are produced with maximum and minimum weight to be set by the user depending on the tube size and clamp design for the machine.
Group
Polypropylene Maximum Load (kN)
Polyamide Maximum Load (kN)
Aluminium Maximum Load (kN)
​Polypropylene Maximum Load (lbf)
Polyamide Maximum Load (lbf)
​Aluminium Maximum Load (lbf)
​​Hexagon
​Head Bolt
1
0.6
0.6
3.5
135
135
787
M6 or
​1/4-20 UNC
1A
1.1
0.7
4.2
247
157
949
M6 or
​1/4-20 UNC
2
1.3
0.8
4.3
292
180
967
M6 or
​1/4-20 UNC
3
1.4
1.6
4.9
315
360
1101
​M6 or
​1/4-20 UNC
4
1.5
1.7
5.0
337
382
1124
M6 or
​1/4-20 UNC
5
1.9
2.0
7.3
427
450
1641
M6 or
​1/4-20 UNC
6
2.0
2.5
8.9
450
562
2000
​M6 or
​1/4-20 UNC
7
2.3
3.2
-
517
719
-
M6 or
​1/4-20 UNC
8
2.6
3.5
-
585
787
-
M6 or
​1/4-20 UNC
Here’s a table showing the maximum loads in straight direction pipe for Standard Series Clamps.
Group
Polypropylene Maximum Load (kN)
Polyamide Maximum Load (kN)
Aluminium Maximum Load (kN)
​Polypropylene Maximum Load (lbf)
Polyamide Maximum Load (lbf)
​Aluminium Maximum Load (lbf)
​​Hexagon
​Head Bolt
3S
1.6
​​4.2
12.1
360
944
​2720
M10 or
​3/8-16 UNC
4S
2.9
4.5
15.1
652
1044
3395
M10 or
​3/8-16 UNC
5S
3.3
5.1
15.5
742
1146
3485
M10 or
​3/8-16 UNC
6S
8.2
9.3
29.5
1843
2090
6609
​M12 or
​7/16-14 UNC
7S
11.0
15.8
34.9
2472
3551
7805
M16 or
​5/8-11 UNC
8S
14.0
21.0
50.0
3147
4772
11240
M20 or
​3/4-10 UNC
9S
28.0
32.0
70.6
6300
7193
15871
​M24 or
​7/8-9 UNC
10S
40.0
48.0
84.5
8992
10790
18996
​M30 or
​11/8-7 UNC
11S
119.0
125.0
181.5
26752
27650
40802
M30 or
​11/4-7 UNC
12S
168.0
180.0
244.5
37767
40465
54965
M30 or
​11/4-7 UNC
The table above shows the maximum loads in straight direction pipe for Heavy Series Clamps.
Group
​Polypropylene Maximum Load (kN)
​Polyamide
​Maximum Load (kN)
​​Polypropylene Maximum Load (lbf)
​Polyamide
​ Maximum Load (lbf)
​​Hexagon ​
​Head Bolt
1D
0.9
0.9
202
202
M6 or
​1/4-20 UNC
2D
2.1
2.2
472
495
M8 or
​5/16-18 UNC
3D
1.9
2.0
427
450
M8 or
5/16-18 UNC
4D
2.7
2.9
607
652
M8 or
5/16-18 UNC
5D
1.7
2.5
382
562
​M8 or
5/16-18 UNC
The table above shows the maximum loads in straight direction pipes for Twin Series Clamps.

TUBECLO TUBE CLAMPS catalogue

Tubeclo Tube Clamps STD Series
File Size: 1349 kb
File Type: pdf
Download File

Tubeclo Tube Clamps HVY Series
File Size: 1257 kb
File Type: pdf
Download File

Tubeclo Tube Clamps TWN Series
File Size: 892 kb
File Type: pdf
Download File

Let's get together

Tubeclo Tube Clamp Heavy Series Double Stack Aluminium Material
Tubeclo Tube Clamp Heavy Series Double Stack Aluminium Material
BAHASA INDONESIA

QUICK LINKS

HOME
ABOUT US
PRODUCT (EN)
PRODUK (ID)
CATALOGUES
CONTACT

GET CLOSE TO US


Subscribe us for more updates!


RFS HYDRAULICS
© 2022 RFS Hydraulics Pte Ltd. All rights reserved.
  • HOME
  • About Us
    • Core Values
  • Brands
    • STAUFF
    • MHA Zentgraf
    • RFS Hydraulics
    • Oleo Tecnica
    • Eaton
    • KPL Industry
    • Both-Well
    • AF Hydro
    • Inteva
  • Product (EN)
    • Pipes and Tubes >
      • Stainless Steel Tubes
      • Stainless Steel Pipes
      • Hydraulic Steel Tubes
      • Copper Pipes
      • Copper Coils
      • Walform Tube
    • Pipe Clamps >
      • STAUFF Clamps
      • Tubeclo Tube Clamps
      • Anti Corrosion Clamps
      • Tubeclo Rubber Insert Clamps
    • Flanges >
      • Square Flanges
      • Hydraulic SAE Flanges
      • Split Flanges
      • SAE Blind Flanges
    • High Pressure Valves >
      • Hydraulic Ball Valves
      • SAE Flange Check Valves
      • Needle Valves
      • High Pressure Check Valves
      • SAE Flange End Ball Valves
      • ISO 6164 Ball Valves
    • High Pressure Fittings >
      • DIN Fittings
      • Double Ferrule Fittings
      • Forged Pipe Fittings
      • Pipe Adapter Fittings
      • JIC Fittings
      • Quick Release Couplings
    • Low Pressure Valves >
      • Low Pressure Ball Valves
      • Flange End Ball Valves
      • Swing Check Valves
      • Single Plate Check Valves
      • Dual Plate Check Valves
      • Spring Check Valves
      • Y-Strainers
      • Gate Valves
      • Globe Valves
      • Butterfly Valves
    • Low Pressure Fittings >
      • Class 150 Fittings
      • Copper Fittings
      • Camlock Fittings
    • Accessories >
      • Pressure Gauges
      • Test Couplings
      • Eaton Walform Machine
      • Anti Bloc Fett
      • STAUFF Tube Cleaning System
      • STAUFF Level Gauges
      • STAUFF Filler Breathers
      • GS Hydro Retain Rings
      • GS Hydro Bonded Seals
      • Dowty Seals
  • Produk (ID)
    • Pipa dan Tabung >
      • Tabung Stainless Steel
      • Pipa Stainless Steel
      • Tabung Baja Hidrolik
      • Tabung Tembaga
      • Kumparan Tembaga
      • Tabung Walform
    • Klem Pipa >
      • Klem Stauff
      • Klem Tabung Tubeclo
      • Klem Stauff Anti Korosi
      • Klem Tubeclo Dengan Bantalan Karet
    • Flensa >
      • Flensa Persegi
      • Flensa SAE Hidrolik
      • Flensa Terpisah
      • Flensa SAE Blind
    • Katup Tekanan Tinggi >
      • Katup Bola Hidrolik
      • Katup Periksa Flensa SAE
      • Katup Jarum
      • Katup Periksa Tekanan Tinggi
      • Katup Bola Ujung Flensa SAE
      • Katup Bola ISO 6164
    • Fitting Tekanan Tinggi >
      • Fitting DIN
      • Fitting Ferrule Ganda
      • Fitting Pipa Tempa
      • Fitting Adaptor Pipa
      • Fitting JIC
      • Kopel Pelepasan Cepat
    • Katup Tekanan Rendah >
      • Katup Bola Tekanan Rendah
      • Katup Bola Ujung Flensa
      • Katup Periksa Ayun
      • Katup Periksa Plat Tunggal
      • Katup Periksa Plat Ganda
      • Katup Periksa Pegas
      • Saringan-Y
      • Katup Gerbang
      • Katup Globe
      • Katup Kupu-kupu
    • Fitting Tekanan Rendah >
      • Fitting Class 150
      • Fitting Tembaga
      • Fitting Camlock
    • Aksesoris >
      • Pengukur Tekanan
      • Kopel Uji STAUFF
      • Mesin Walform
      • Fett / Gemuk Anti Blok
      • Sistem Pembersih Tabung STAUFF
      • Pengukur Level STAUFF
      • Filler Breathers STAUFF
      • Cincin Penahan GS Hydro
      • Sil Bonded GS Hydro
      • Sil Dowty
  • Catalogues
    • PIPES AND TUBES
    • PIPES CLAMPS
    • FLANGES
    • HIGH PRESSURE VALVES
    • HIGH PRESSURE FITTINGS
    • LOW PRESSURE VALVES
    • LOW PRESSURE FITTINGS
    • ACCESSORIES
  • Contact
