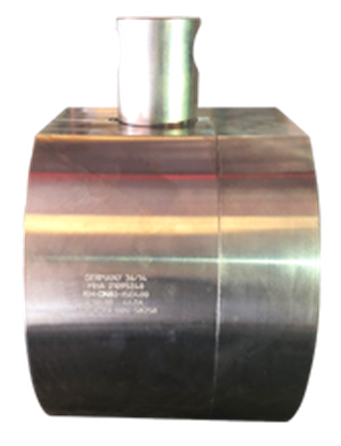

ISO 6164 BALL VALVES

Bahasa Indonesia
ISO 6164-1 ball valve is produced after the ISO 6164-1 (ISO250) and ISO 6164-2 (ISO400) standards. The ball valves are round in shape and have a size ranging from 1/2” (DN 13) to 3” (DN80). ISO 6164 ball valves are high pressure ball valves made for use as on and off flow valves mostly used in hydraulic applications.

​The working pressure ranges from 100 bar to 400 bar, depending on the size diameter of the ball valve. The ISO 6164 Ball Valve is made of stainless steel (2828 & 282A) and carbon steel (2128 & 212A) materials. The working temperature of the ball valve is available in ranges from -10⁰c to 100⁰c. It is also made in the design of a quarter-turn type ball valve.
Material Specification
  • Carbon Steel, 2128 and 212A
  • Stainless Steel, 442A and 4428
Connection Type
  • ISO 6164 Flange
Size
  • 1/2” to 3”
Working Pressure
  • 250 Bar
  • 400 Bar

1. What are ISO 6164 Ball Valves?

ISO 6164 ball valves are high-pressure valves used in hydraulic systems. The working pressure of the valve is determined by the body size of the valve. Due to this, an increase in the body size of the valve leads to a decrease in the working pressure and vice versa. However, the total precise pressure the valve uses to function is subjected to the tube or pipe rating and the type of flange connected. The ISO 6164 ball valve has a working temperature between -10⁰c and 100⁰c, all based on the material combination of the whole ball valve.
The table below shows more about the ISO 6164-1 (ISO250) material combination:
Model Type
(ISO 6164-2)
Working Pressure PN (bar)
Unit Weight
​(kg)
KH-DN13-ISO250
350
2.90
KH-DN19-ISO250
350
6.80
KH-DN25-ISO250
315
7.20
KH-DN32-ISO250
250
12.50
KH-DN38-ISO250
250
16.60
KH-DN51-ISO250
​250
24.90
KH-DN56-ISO250
250
26.60
KH-DN63-ISO250
250
36.90
This table shows the material combination for the ISO 6164-2 (ISO 400) ball valve:
Model Type
(ISO 6164-2)
Working Pressure PN (bar)
Unit Weight
​(kg)
KH-DN13-ISO400
400
2.90
KH-DN19-ISO400
400
6.80
KH-DN25-ISO400
400
7.20
KH-DN32-ISO400
400
12.50
KH-DN38-ISO400
400
16.60
KH-DN51-ISO400
400
24.90
KH-DN56-ISO400
400
26.60
KH-DN63-ISO400
400
42.53
KH-DN70-ISO400
315
43.00
KH-DN80-ISO400 (PN100)
100
51.00
KH-DN80-ISO400 (PN400)
400
63.00

2. What materials are the ISO 6164 Ball Valves made of?

The ISO 6164 ball valve is made from stainless steel and carbon steel. Stainless steel (SS316) is a mixture of alloys from chromium and iron. It has 10.5% chromium mixed with other alloys like nickel, manganese, carbon, silicon, copper, etc. the choice of alloy to be added is based on the project at hand. Stainless steel valves are very common and mostly used for ball valves due to these reasons:
  • Versatility: the quality of the stainless steel is very high and this has made the material gain a higher relevance in the industrial world. Also, stainless steel is a versatile material that can be used for different purposes like plumbing, water systems, oil, and gas, etc.
  • Working Pressure: Stainless steel ball valves can withstand higher working pressure. For the application of the valve in some industries with high pressure systems, the ability of the valve to be compatible with the high pressure is an advantage and this is true for stainless steel ball valves.
  • High Corrosion Resistance: Stainless steel material has a high level of corrosion resistance and the addition of molybdenum further increases the resistance level. Valves while opening and closing are prone to corroding and this may lead to stiffness or breaking of the valve. However, stainless steel ball valves can withstand harsh water/fluid environments and last longer too.​
SS316 ISO 6164 Ball Valves
SS316 ISO 6164 Ball Valves
​Carbon Steel is steel containing carbon content ranging from 0.05% to 2.1%. Carbon steel is used in various industries mostly due to its toughness and strength. The material is used as a material for the body and disc of the carbon steel ball valve. Carbon steel valves are slightly cheaper than stainless steel, however, they are highly susceptible to corrosion and rust.

​These steel (carbon and stainless) are generally available, however, for other combinations of materials, requests can be made for availability based on specifications. The table below shows the chemical combination for the ISO 6164 Ball Valve:
Materials
212A
2128
282A
2828
Size
DN 15-50
DN 15-50
DN 15-50
DN 15-50
O-rings
NBR
FPM
NBR
FPM
Ball
Steel
Steel
Steel
Steel
Ball Seats
POM
POM
POM
POM
T Min. / T Max.
-10⁰c / 100⁰c
-10⁰c / 100⁰c
​-10⁰c / 100⁰c
-10⁰c / 100⁰c
Body
Steel
Steel
Steel
​Steel
Stem
​Steel
Steel
Steel
Steel

BAHASA INDONESIA

3. What are the certifications of the ISO 6164 Ball Valve?

Test Temperatures
  • 20⁰c – 500⁰c
Test Mediums
  • Nitrogen
  • Water
  • Hydraulic oil
  • Air
  • Helium
Test Pressures
  • 20 MPa nitrogen
  • 0.6 MPa – 40 MPa air
  • Helium leak test
  • O.01 MPa – 650 MPa water
The MHA-ZENTGRAF ball valve is designed with the following test certifications.
6.1 Test certificates per DIN EN 10204 standards for ISO 6164 Ball Valve
  • 2.2
  • 3.1

​6.2 Material Certificates per DIN EN 10204 standards

  • 3.1
  • 2.2
  • 3.2
Certificate Type
Content of Certifications
Types of Test Certificates
Confirmation of Certificate by
2.2
Confirmation of accordance to the order stating the results of non-specific tests
Test Report
The manufacturer
3.1
Confirmation of accordance to the order stating the results of specific tests
Inspection Certificate 3.1
Authorized manufacturer inspection representative (independent party from the production division)
3.2
Confirmation of accordance to the order stating the results of specific tests
Inspection Certificate 3.2
Authorized manufacturer inspection representative (independent party from the production division) and the authorized buyer inspection representative or the inspection representative who is authorized by official legal regulation
The table above shows the material certificates by the MHA-Zentgraf.

4. What accessories are compatible with the ISO 6164 Ball Valve?

ISO 6164 Ball Valves
ISO 6164 Ball Valves
The ISO 6164 Ball Valve has 5 component parts. They are body, O-ring, stem, ball, and ball seats. Asides from the parts, some additional accessories are compatible with the ball valve. They are specially customized using the specifications of the ball valve and available upon request. These accessories are:
  • Detent
  • Locking devices
  • Alternative lever designs and materials
  • Actuators packages
  • Special combination
  • Mounting holes
  • Position switches.

5. What are the uses of ISO 6164 Ball Valve?

The ball valve is used in several industries. These are:
  • Power Units
  • Offshore sector
  • Pipeline construction
  • Marine hydraulics
  • Oil and gas industry
  • Machine tool
  • System engineering

ISO 6164 BALL VALVES CATALOGUE

MHA ISO 6164 Ball Valves
File Size: 4123 kb
File Type: pdf
Download File

Let's get together

ISO 6164 Ball Valves
ISO 6164 Ball Valves
Bahasa Indonesia

QUICK LINKS

HOME
ABOUT US
PRODUCT (EN)
PRODUK (ID)
CATALOGUES
CONTACT

GET CLOSE TO US


Subscribe us for more updates!


RFS HYDRAULICS
© 2022 RFS Hydraulics Pte Ltd. All rights reserved.
  • HOME
  • About Us
    • Core Values
  • Brands
    • STAUFF
    • MHA Zentgraf
    • RFS Hydraulics
    • Oleo Tecnica
    • Eaton
    • KPL Industry
    • Both-Well
    • AF Hydro
    • Inteva
  • Product (EN)
    • Pipes and Tubes >
      • Stainless Steel Tubes
      • Stainless Steel Pipes
      • Hydraulic Steel Tubes
      • Copper Pipes
      • Copper Coils
      • Walform Tube
    • Pipe Clamps >
      • STAUFF Clamps
      • Tubeclo Tube Clamps
      • Anti Corrosion Clamps
      • Tubeclo Rubber Insert Clamps
    • Flanges >
      • Square Flanges
      • Hydraulic SAE Flanges
      • Split Flanges
      • SAE Blind Flanges
    • High Pressure Valves >
      • Hydraulic Ball Valves
      • SAE Flange Check Valves
      • Needle Valves
      • High Pressure Check Valves
      • SAE Flange End Ball Valves
      • ISO 6164 Ball Valves
    • High Pressure Fittings >
      • DIN Fittings
      • Double Ferrule Fittings
      • Forged Pipe Fittings
      • Pipe Adapter Fittings
      • JIC Fittings
      • Quick Release Couplings
    • Low Pressure Valves >
      • Low Pressure Ball Valves
      • Flange End Ball Valves
      • Swing Check Valves
      • Single Plate Check Valves
      • Dual Plate Check Valves
      • Spring Check Valves
      • Y-Strainers
      • Gate Valves
      • Globe Valves
      • Butterfly Valves
    • Low Pressure Fittings >
      • Class 150 Fittings
      • Copper Fittings
      • Camlock Fittings
    • Accessories >
      • Pressure Gauges
      • Test Couplings
      • Eaton Walform Machine
      • Anti Bloc Fett
      • STAUFF Tube Cleaning System
      • STAUFF Level Gauges
      • STAUFF Filler Breathers
      • GS Hydro Retain Rings
      • GS Hydro Bonded Seals
      • Dowty Seals
  • Produk (ID)
    • Pipa dan Tabung >
      • Tabung Stainless Steel
      • Pipa Stainless Steel
      • Tabung Baja Hidrolik
      • Tabung Tembaga
      • Kumparan Tembaga
      • Tabung Walform
    • Klem Pipa >
      • Klem Stauff
      • Klem Tabung Tubeclo
      • Klem Stauff Anti Korosi
      • Klem Tubeclo Dengan Bantalan Karet
    • Flensa >
      • Flensa Persegi
      • Flensa SAE Hidrolik
      • Flensa Terpisah
      • Flensa SAE Blind
    • Katup Tekanan Tinggi >
      • Katup Bola Hidrolik
      • Katup Periksa Flensa SAE
      • Katup Jarum
      • Katup Periksa Tekanan Tinggi
      • Katup Bola Ujung Flensa SAE
      • Katup Bola ISO 6164
    • Fitting Tekanan Tinggi >
      • Fitting DIN
      • Fitting Ferrule Ganda
      • Fitting Pipa Tempa
      • Fitting Adaptor Pipa
      • Fitting JIC
      • Kopel Pelepasan Cepat
    • Katup Tekanan Rendah >
      • Katup Bola Tekanan Rendah
      • Katup Bola Ujung Flensa
      • Katup Periksa Ayun
      • Katup Periksa Plat Tunggal
      • Katup Periksa Plat Ganda
      • Katup Periksa Pegas
      • Saringan-Y
      • Katup Gerbang
      • Katup Globe
      • Katup Kupu-kupu
    • Fitting Tekanan Rendah >
      • Fitting Class 150
      • Fitting Tembaga
      • Fitting Camlock
    • Aksesoris >
      • Pengukur Tekanan
      • Kopel Uji STAUFF
      • Mesin Walform
      • Fett / Gemuk Anti Blok
      • Sistem Pembersih Tabung STAUFF
      • Pengukur Level STAUFF
      • Filler Breathers STAUFF
      • Cincin Penahan GS Hydro
      • Sil Bonded GS Hydro
      • Sil Dowty
  • Catalogues
    • PIPES AND TUBES
    • PIPES CLAMPS
    • FLANGES
    • HIGH PRESSURE VALVES
    • HIGH PRESSURE FITTINGS
    • LOW PRESSURE VALVES
    • LOW PRESSURE FITTINGS
    • ACCESSORIES
  • Contact
