QUICK RELEASE COUPLINGS

Bahasa Indonesia
Quick release couplings are also known as quick coupler, quick connect coupling, or quick release fitting. They are made following the ISO 7241-A, Gromelle 6000, ISO 7241-B, Parker 60, and Faster depending on the industry and application intended. Quick release couplings are made in various sizes ranging from 1/4” to 2”.

​The working pressure of the couplings is determined by the size used, however, it can withstand a maximum of 950 bars. They are made of brass, carbon steel A105, or stainless steel SS316. Quick release couplings have two parts – male (plug or nipple) and female (socket or coupling). It uses the connection types National Pipe Thread (NPT) or British Standard Pipe Parallel (BSPP). Quick release couplings are used to create or dismantle the connection of fluid lines.
Material Specification
  • Brass
  • Carbon Steel A105
  • Stainless Steel SS316
Connection Type
  • Threaded BSPP
  • Threaded NPT
Size
  • 1/4” to 2”
Working Pressure
  • Up to 950 Bars

1. What are Quick Release Couplings?

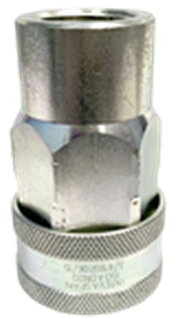

HYDR Quick Coupling Female ISO A
HYDR Quick Coupling Female ISO A
Quick Couplings are a fitting type used to join fluid lines with system components that often need connection and disconnection. They are suitable for use in a hydraulic or pneumatic system to create or dismantle fluid lines' connection.

​The fittings are designed in a way to ensure easy installation. For instance, the male end is inserted into the female end to ensure the components are tightly fitted and sealed together. According to the industries and systems application, the couplings are designed following various standards such as Gromelle 6000, Parker 60, Hansen W6000, ISO 7241-B, ISO 7241-A. More so, quick release couplings are referred to as push-in connects because connection only occurs through a quick push.

2. How does Quick Release Coupling work?

Quick release couplings are made of Brass (DIN-EN 12164), Carbon Steel (EN-10277-3), and Stainless Steel SS316 (AISI 316). The working pressure for quick release couplings is a maximum of 950 bars, however, there’s a different rating for each standard. For instance, the ISO 7241-A has a maximum of 350 bars working pressure, ISO 7241-B has a working pressure of 400 bars, while the Gromelle 6000 works with a maximum pressure rating of 950 bars.

The connection types available for quick release couplings are threaded BSPP and threaded NPT. The couplings are divided into two parts, male and female. The male is also known as the plug while the female part is the socket. For different standards, there are different connection processes. For Gromelle W6000, the connection type is a screw-to-connect. For others, ISO 7241-A, ISO 7241-B, and Hansen W6000, the connection is a push-to-connect type (male and female).
Quick release coupling is produced in different sizes ranging from 1/4” to 2”. However, a known fact explains that the smaller the sizes, the greater the working pressure it withstands and vice versa. For maximum safety, the factor to be used is 4.

​Please refer to the table on the right for the sizes and working pressure:

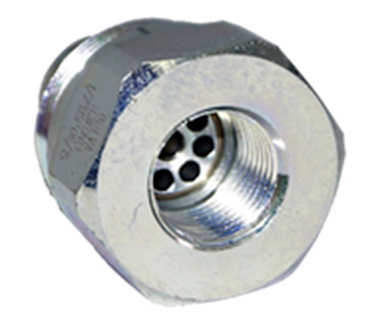

Gromelle 6000 Dust Cap
Gromelle 6000 Dust Cap
Size
Working Pressure (Bar)
203 Series TGW
Working Pressure (Bar)
ISO 7241-A Norm
Working Pressure (Bar)
ISO 7241-B Norm
1/4”
950
350
400
3/8”
750
300
380
1/2”
750
300
350
3/4”
650
250
320
1”
450
230
300
1 1/4”
450
230
280
1 1/2”
300
200
140
2”
300
130
100

BAHASA INDONESIA

3. How do you identify a hydraulic Quick Release Coupling?

There’s a wide availability of body and seal materials, which has increased the quick couplings' flexibility and versatility.

​The table below shows the features of the different standards available:
Quick Release Coupling Standard
203 Series TGW
ISO 7241-A Norm
ISO 7241-B Norm
Connection Type
Threaded Type
Push-in type
Push-in type
Working Pressure
Up to 950 Bars
Up to 350 Bars
Up to 400 Bars
Material Type
  • Stainless steel, AISI 316
  • Brass, DIN-EN 12164
  • Carbon steel, EN-102773
  • Brass, DIN-EN 12164
  • Carbon steel, EN-102773
  • Stainless steel, AISI 316
  • Brass, DIN-EN 12164
  • Carbon steel, EN-102773
  • Stainless steel, AISI 316
Working Temperature
  • NBR (-30 ⁰c – 100 ⁰c)
  • EPDM (-40 ⁰c – 150 ⁰c)
  • Viton (-10 ⁰c – 200 ⁰c)
  • NBR (-30 ⁰c – 100 ⁰c)
  • EPDM (-40 ⁰c – 150 ⁰c)
  • Viton (-10 ⁰c – 200 ⁰c
  • NBR (-30 ⁰c – 100 ⁰c)
  • EPDM (-40 ⁰c – 150 ⁰c)
  • Viton (-10 ⁰c – 200 ⁰c
Equivalent Design
  • Gromelle 6000
  • Hansen W6000
  • Tuthill 6000
  • Parker 6600
  • Snap-Tite 61
  • Faster ANV
  • Aeroquip FD 56
  • Faster H
  • Aeroquip FD45
  • Snap-Tite 61
  • Parker 60

4. How do you install a Quick Release Coupling?

A quick coupling comprises the body, a collet, and an O-ring. The body of the coupling screens the O-ring and collet. The tube is then placed into the body through the collet and O-ring. The joining of these components gives the system a water-tight seal. When the system begins to run, there is an increase in the tube's pressure, which turns to water or air.

For the ISO 7241-A, the system is flexible for use in maintenance or operation systems. The coupling is designed in a ball closing system or poppet valve shape. The poppet valve is attached to a metal perch which helps keep the valve alignment in line with the settings and avoid flow duplication. The coupler sleeve and nipple body are stiffened to increase the resistance to different damages that could occur during system operation. The configuration type used for quick release coupling is NPT or BSPP.
Quick Coupling 203
Quick Coupling 203
Parker 60 or ISO 7241-B are designed as poppet valves and a metal to metal valve stop, which helps keep valve alignment configured and avoid flow duplication. It is used for lower life cycle systems such as high pressure fluid transfer, mine roof support system, and hydraulic jacks. The connection type is a female pipe thread in NPT or BSPP.

​203 Series TGW or Screw end Gromelle W6000 are applied for high pressure pipes, systems, and hydraulic applications. They ensure the smooth and quick running of fluid. The 203 Series TGW has a screw locking device that increases the resistance to heavy hydraulic loads. They can withstand harsh situations such as system vibrations, hose bending, or hydraulic shocks.

The table below shows more about the applications of the quick release coupling fitting:
Quick Release Coupling Standard
203 Series TGW
ISO 7241-A Norm
ISO 7241-B Norm
Applications
  • Industrial
  • Construction
  • Material Handling
  • Oil and Gas
  • System subject to mechanical loads, high pressures
  • Industrial
  • Snow plough
  • Mobile applications
  • Truck trailer connection
  • Agricultural
  • Offshore
  • Cleaning equipment
  • Industrial hydraulics
  • Steam systems
  • Water and coolant lines
  • Mobile applications
  • Foods and chemical processing

5. How do you release a Quick Release Coupling Fitting?

Quick Release Coupling ISO 7241-B Male
Quick Release Coupling ISO 7241-B Male
Adapter fittings are connectors that can provide an instant solution for easy transfer of flow from one direction to the other. The renowned brand of adapter fittings available in the market is Parker, United States.

The advantages of using adapter fittings are:
  • There’s a variety of choices for connections and configurations available for use.
  • There’s plastic cap protection given for the male thread connections.
  • Adapter fittings are suitable to be used in high pressure machines.
  • The threads are designed to provide high reliability and avoid any form of leakage.

QUICK RELEASE COUPLINGS CATALOGUE
​Inteva Quick Release Couplings​​
​STAUFF Quick Release Couplings​​

Let's get together

Quick Release Coupling 203 Series TGW
Quick Release Coupling 203 Series TGW
Bahasa Indonesia

QUICK LINKS

HOME
ABOUT US
PRODUCT (EN)
PRODUK (ID)
CATALOGUES
CONTACT

GET CLOSE TO US


Subscribe us for more updates!


RFS HYDRAULICS
© 2024 RFS Hydraulics Pte Ltd. All rights reserved.
  • HOME
  • About Us
    • Core Values
  • Brands
    • STAUFF
    • MHA Zentgraf
    • RFS Hydraulics
    • Oleo Tecnica
    • Eaton
    • KPL Industry
    • Both-Well
    • AF Hydro
    • Inteva
  • Product (EN)
    • Pipes and Tubes >
      • Stainless Steel Tubes
      • Stainless Steel Pipes
      • Hydraulic Steel Tubes
      • Copper Pipes
      • Copper Coils
      • Walform Tube
    • Pipe Clamps >
      • STAUFF Clamps
      • Tubeclo Tube Clamps
      • Anti Corrosion Clamps
      • Tubeclo Rubber Insert Clamps
    • Flanges >
      • Square Flanges
      • Hydraulic SAE Flanges
      • Split Flanges
      • SAE Blind Flanges
    • High Pressure Valves >
      • Hydraulic Ball Valves
      • SAE Flange Check Valves
      • Needle Valves
      • High Pressure Check Valves
      • SAE Flange End Ball Valves
      • ISO 6164 Ball Valves
    • High Pressure Fittings >
      • DIN Fittings
      • Double Ferrule Fittings
      • Forged Pipe Fittings
      • Pipe Adapter Fittings
      • JIC Fittings
      • Quick Release Couplings
    • Low Pressure Valves >
      • Low Pressure Ball Valves
      • Flange End Ball Valves
      • Swing Check Valves
      • Single Plate Check Valves
      • Dual Plate Check Valves
      • Spring Check Valves
      • Y-Strainers
      • Gate Valves
      • Globe Valves
      • Butterfly Valves
    • Low Pressure Fittings >
      • Class 150 Fittings
      • Camlock Fittings
    • Accessories >
      • Pressure Gauges
      • Test Couplings
      • Eaton Walform Machine
      • Anti Bloc Fett
      • STAUFF Tube Cleaning System
      • STAUFF Level Gauges
      • STAUFF Filler Breathers
      • GS Hydro Retain Rings
      • GS Hydro Bonded Seals
      • Dowty Seals
  • Produk (ID)
    • Pipa dan Tabung >
      • Tabung Stainless Steel
      • Pipa Stainless Steel
      • Tabung Baja Hidrolik
      • Tabung Tembaga
      • Kumparan Tembaga
      • Tabung Walform
    • Klem Pipa >
      • Klem Stauff
      • Klem Tabung Tubeclo
      • Klem Stauff Anti Korosi
      • Klem Tubeclo Dengan Bantalan Karet
    • Flensa >
      • Flensa Persegi
      • Flensa SAE Hidrolik
      • Flensa Terpisah
      • Flensa SAE Blind
    • Katup Tekanan Tinggi >
      • Katup Bola Hidrolik
      • Katup Periksa Flensa SAE
      • Katup Jarum
      • Katup Periksa Tekanan Tinggi
      • Katup Bola Ujung Flensa SAE
      • Katup Bola ISO 6164
    • Fitting Tekanan Tinggi >
      • Fitting DIN
      • Fitting Ferrule Ganda
      • Fitting Pipa Tempa
      • Fitting Adaptor Pipa
      • Fitting JIC
      • Kopel Pelepasan Cepat
    • Katup Tekanan Rendah >
      • Katup Bola Tekanan Rendah
      • Katup Bola Ujung Flensa
      • Katup Periksa Ayun
      • Katup Periksa Plat Tunggal
      • Katup Periksa Plat Ganda
      • Katup Periksa Pegas
      • Saringan-Y
      • Katup Gerbang
      • Katup Globe
      • Katup Kupu-kupu
    • Fitting Tekanan Rendah >
      • Fitting Class 150
      • Fitting Camlock
    • Aksesoris >
      • Pengukur Tekanan
      • Kopel Uji STAUFF
      • Mesin Walform
      • Fett / Gemuk Anti Blok
      • Sistem Pembersih Tabung STAUFF
      • Pengukur Level STAUFF
      • Filler Breathers STAUFF
      • Cincin Penahan GS Hydro
      • Sil Bonded GS Hydro
      • Sil Dowty
  • Catalogues
    • PIPES AND TUBES
    • PIPES CLAMPS
    • FLANGES
    • HIGH PRESSURE VALVES
    • HIGH PRESSURE FITTINGS
    • LOW PRESSURE VALVES
    • LOW PRESSURE FITTINGS
    • ACCESSORIES
  • Contact
